Maintenance - Mechanical

By Jeff Zurschmeide


Your investment in your restoration is substantial, but the strange fact is that many restored cars are not cared for as they really should be. Specifically, because most restoration projects are not driven very often or very far, owners neglect mechanical maintenance. After all, youíve only put 500 miles on the car since the resto, right?

Well, the fact is that just like people, cars do better when they get regular exercise. Even leaving your car in storage takes a toll on parts. You need to warm up a car regularly to dispel condensing water and keep a coat of oil on the mechanical parts. Plus, if youíre using natural oils they will develop acids over time, and those acids need to be flushed. Thatís why the oil change interval is 3,000 miles or every 6 months.

You need a mechanical maintenance regimen appropriate to your car and your driving habits. The following is a seasonally-based mechanical maintenance schedule. I organize my maintenance schedule this way because my restored cars are used about 1,000 to 2,000 miles of driving each year in about 10 trips. A trip is usually about 20-50 miles, but there are one or two trips up to 600 miles long. The cars are garaged the rest of the time, including a long winter hiatus. This maintenance calendar begins with winter storage:

Prepare for winter storage:

∑ Wash and clean the car.

∑ Change the motor oil and filter.

∑ Test and ensure the engine coolant is a 50/50 mix of anti-freeze and water.

∑ Check and ensure that all tires are properly inflated. Overinflating a little bit (10 pounds) is OK if the tires tend to lose air over time.

∑ Fill the fuel tank and add fuel stabilizer. Run the car long enough to circulate stabilized fuel to the carburetor.

∑ Disconnect the battery and place a high-quality battery tender on the car.

∑ Make sure the parking brake is not set, and the car is in gear

∑ Add moth balls or other pest repellents.

Remove the car from winter storage:

∑ Remove moth balls and pest repellents

∑ Lubricate the chassis.

∑ Ensure the battery is well-charged and reconnect it.

∑ Spray anti-corrosive on battery connections.

∑ Check the tire inflation and set pressures for driving. Donít forget the spare!

∑ Check the wheel lug nuts for tightness.

∑ Check all fluid levels, including brake and clutch hydraulic fluid as appropriate.

∑ Check the ignition timing and dwell.

∑ Check generator/alternator charging output.

∑ Drive the car and run the heater and heater fan.

After using up the winter tank of stabilized gasoline:

∑ Adjust the brakes.

∑ Adjust the clutch (if necessary).

∑ Adjust the valve lash.

∑ Refill with fresh gasoline.

Before each tour or rally:

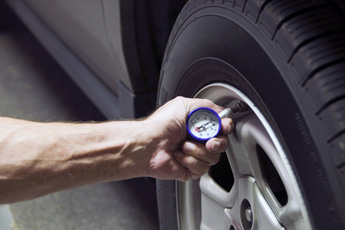

∑ Check tire inflation.

∑ Check the wheel lug nuts.

∑ Check all fluid levels.

Before the first long tour or rally:

∑ Flush brake and clutch hydraulic fluid.

∑ Check tire inflation.

∑ Check and tighten wheel bearings.

∑ Check and adjust carburetor tuning.

∑ Check all spares and trunk supplies.

About Mid-Season:

∑ Rotate the tires.

∑ Change the oil and filter.

∑ Check the ignition timing and dwell.

∑ Replace spark plugs, if necessary.

You may find that a monthly/quarterly/annual calendar, or a mileage-based maintenance calendar works better for you. What is important is that you develop a schedule so that you do not forget to attend to important mechanical maintenance. Otherwise it is far too easy to believe ďI just checked that recentlyĒ when you have let 5 years go by between chassis lubrication or valve lash adjustment.

Classic cars simply take more maintenance than modern cars, and they have no facility to automatically tell you when something is out of adjustment. Diligent maintenance pays off in enjoyment, and neglect can easily leave you sitting by the side of the road waiting for a tow truck.

Dos and Don'ts
Thumb up  DO
  • Follow the maintenance instructions in the original ownerís manual
  • Use modern synthetic oil products that minimize wear
  • Make a maintenance calendar to remind yourself
  • Remember that older cars just take more tinkering than new ones

Thumb down  DON’T
  • Donít neglect maintenance even if you havenít driven the car
  • Donít forget to maintain the parts you canít easily see
  • Donít hesitate to find a lift for chassis lubrication
The Popular Restorations Project Car
Author photo

1946 Packard: Mechanical maintenance

Previous

Next

As of the date of this article the Popular Restorations project car has been (with minor exceptions) fully restored and is under cover waiting out its first winter. I took it to two car shows last summer--I canít wait to participate in more beginning this spring.

The mechanical maintenance, so far, has been minimal as the restored car only has a few hundred miles on it. The break-in oil has been replaced with 30W Brad Penn, Penn Grade 1 High Performance Oil, which has more zinc than typical 30W oils.

I didnít follow some of the advice we espouse on these pages--the fuel tank is mostly full but has no stabilizer in it. However, as soon as the weather dries up for a few days I plan on taking the car out for good long drive and will put the stabilizer in at that time.

My biggest concern at this point is fixing some minor oil leaks, mainly from the engine, but to a lesser degree the rear end. As always, the car seems to be about two-weeks-work from being completely done although it really is finished enough for entering into shows.

After the car has a few more miles on it Iíll add an update to this forum.

Previous

Next
Comments
Interview


Doan Vintage Solutions

By Jeff Zurschmeide

Jeff Doan
9765 SW Frewing St.
Tigard, OR, 97223
(503) 598-8590

PR: Whatís your theory on post-restoration mechanical maintenance?

JD: I subscribe to the 5-50-500 school of thought. That means you get your restoration done and spin it around the block a few times and bring it in and check everything. There is no substitute for putting a wrench on things and checking them. Then you do it again at 50 miles and again at 500 miles. By that time, everything should be dialed in and stay together. I think itís a great philosophy.

PR: What do you do about suspension and chassis lubrication?

JD: The car should have been thoroughly lubricated when it was assembled, and you should follow the regular scheduled maintenance. There are people who put show cars together dry to avoid any grease becoming visible. But eventually, even a show car gets driven and if you put it together dry youíll have to take it apart again. I always put cars together thinking that Iíll be the next guy who has to take it apart again.

PR: What about synthetic oils for break-in?

JD: There are applications for synthetics. When I was working in a race shop, weíd break in engines on a dyno, and we discovered that we had to do the break-in with conventional oil because the synthetics lubricate so well that parts wonít seat. So we would break in the engine on conventional oil, then drain it off and put synthetic in the engine when we installed it in the car. But for a street car, I wouldnít change to a synthetic oil for 2500 miles or so.

PR: Anything else to know about break-in procedures?

JD: I think a big mistake that a lot of people make is that they get to the point where they start up the engine, and they start it and let it idle. Cams and lifters require a dynamic break-in ­- you need to run them at about 2500 RPM for about 15 or 20 minutes. You might wake the neighbors, but thatís what youíve gotta do. Keep an eye on the gauges, and if it gets hot, then shut it down, but donít drop it down to an idle. Also, you need to be aware of the modern oil issue and the lack of zinc additives. I like Valvoline racing oil because it still has the ZDDP in it.

PR: Many restored cars only see 1,000 miles a year -what about brake maintenance?

JD: For cars that donít get driven, modern silicone fluid is OK, but if you go out and run a rally youíll regret it. Itís better to use Castrol GT LMA.

PR: Any other advice?

JD: Always get the best products for maintaining your car. Youíll never regret buying the best.
