Steering Wheels

By Jeff Zurschmeide


Of all the parts that go into all the cars that get restored each year, the steering wheel is always special. At least, it is to me. When you slide into the driverís seat of your classic car, the steering wheel is right there, front and center. The steering wheel is your interface to control the car, and thereby to command the road stretching out before you. Itís the part of your car you feel most intimately, with your bare hands or through thin gloves designed to maximize grip without reducing the subtle connection between man and machine.

Okay, maybe thatís a bit over the top, but I really like a nice steering wheel, and Iím not at all unusual in that regard.

The good news about steering wheels is that theyíre generally built tough, as every automaker always knew that this part would have to absorb a lot of sun baking, dirty hands, and the occasional whack as you curse the guy in front of you. The other good news is that even if your wheel has seen better days, theyíre generally easy to restore.

And when youíre done, the result is most soul-satisfying.

First things first--youíll want to remove your steering wheel from the car to work on it effectively. Sometimes this is not an easy task - especially if you donít want to damage or even ruin the wheel. Many older steering wheels have been sitting on their splined shafts for decades, and have long-since rust-welded themselves in place.

Pay careful attention to the materials used in the wheel before you use heat to try and break a stuck wheel loose! Aluminum doesnít always take well to a propane torch, and you donít want to burn plastic trim, turn signal stalks, clear coatings, or other nearby components.

A steering wheel puller is often a good investment, along with a nice plastic dead-blow hammer. Work carefully and patiently and you will eventually get the wheel off. Put a little anti-seize on the splines when you reinstall it, and youíll save time and agony later.

Cross-reference: If your wheel has chrome trim or a fancy metal horn push, refer to the section on metal trim for information on restoring those materials.

Steering wheels have been made out of just about every material known to man. Weíll cover a few of the more popular styles. Many wheels are leather-wrapped, which is both easy and fun to restore. If your wheel has a wood or metal frame wrapped in leather, you can usually find a replacement skin for it. Companies such as Wheelskin (www.wheelskin.com) allow you to measure your wheel and send them the overall wheel diameter and the circumference of the rim so they can custom-make your new leather to fit your wheel precisely. You can also specify the color of the wheel skin you need. Basic black and brown account for the vast majority of wheels.

For more complex wheels, you may sometimes need to obtain some thin leather in a matching color to stitch or glue small trim pieces into place before applying the primary leather wrap. The best news is that these premade leather wraps are also pre-drilled for easy stitching in place.

Wooden steering wheels are lovely when theyíre slick and shiny and beautiful. If yours has been weathered for years after losing its varnish, or if your wheel has been chewed by wedding rings (look at the area from 10 oíclock to noon on the wheel - youíll see the damage) then you will have to evaluate what level of intervention is necessary. In some cases, sanding and wood filler will bring the wheel back to stainable and sealable condition. In other cases, you may have to get some hardwood and do some careful woodworking to replace material thatís too far gone.

The good news here is that most of the time, some careful sanding work and a little stain will have your wheel ready for a new coat of varnish, and a good quality marine spar varnish will restore luster and wood grain nicely. Be sure to use plenty of thinner on the first coat so it soaks into the wood!

Finally, a lot of classic wheels are covered in a layer of bakelite, vinyl, or plastic. These materials are prone to cracking after decades of UV exposure, and they pose the biggest challenge to fix. Many restorers hide these sins with a leather cover, and if a hand-stitched leather covering is a period-correct option or common aftermarket addition for your car, you can get away with that in all but the most exacting concours competitions.

For a near-perfect steering wheel restoration, you can use a professional restoration service. Look at the External Links sectin of this page for suggestions.

Another option is to obtain a steering wheel restoration kit that uses a filler, such as the POR-15 products or Eastwood products. These kits include an epoxy putty that hardens into material that is indistinguishable from the original. Then you sand the hardened putty until itís even with the surrounding material and paint the wheel with primer and the final color.

HINT Hint...
You can also use the POR-15 steering wheel kit to repair knobs and turn signal lever ends and any other parts made of the same kinds of materials.

Whatever design youíre working with, itís worth your time to pay special attention to your steering wheel and get it just right, because itís going to be right there in your hands every time you drive your restoration project, and your hands will know the difference between a quality restoration and a hack job.

Dos and Don'ts
Thumb up  DO
  • Take the steering wheel out of the car to work on it
  • Take the time to get your steering wheel just right
  • Carefully examine the splines or other connection interface to make sure your steering wheel has a solid purchase on the steering shaft before you reinstall it

Thumb down  DON’T
  • Donít use heat to loosen a stuck wheel unless youíre sure itís safe
  • Donít break the wheel trying to remove it
  • Donít try to hide flaws with anything but an appropriate leather cover
  • Donít use an aftermarket wheel on a judged restoration - they will deduct points no matter how nice or period-appropriate the wheel may be
The Popular Restorations Project Car
Author photo

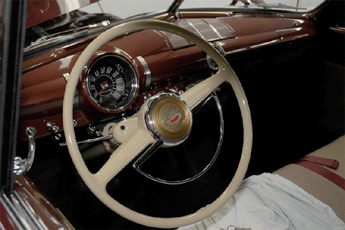

1946 Packard: A charming steering wheel

Previous

Next

One of the reasons I chose the 1946 Packard Seven Passenger for the Popular Restorations project car was that it only had 50,000 miles on it. As of this writing, it is at 51,000 plus change. Although it was a low-mileage car, it wasnít in such fine condition that I was comfortable leaving it original. The paint was worn through in places, it had body rust, and the chrome, engine, transmission, brakes, and upholstery were all in need of attention. On the other hand, because of the low miles, nothing was completely worn out, including the steering wheel.

In fact, the steering wheel is one part of the car where I felt its wear adds charm. It has a couple of minor cracks but is very presentable.

Iím not sure how it got its cracks. Maybe the plastic shrunk with age or maybe itís from the stress of being turned hard. The car has no power steering and when itís not rolling the wheel is a challenge to turn, despite its huge 18-inch diameter and 5.25 turns lock to lock. Parallel parking on warm day into a tight spot is sure to raise a sweat!

I suppose if someone were to offer me an expertly restored wheel in exchange I might accept it. But itís not something worth paying for--Iím happy with its condition as it is.

Previous

Next
Comments
Interview


POR-15, Inc.

By Jeff Zurschmeide

Chris Wright
PO Box 1235
Morristown, NJ 07962
(800) 726-0459
www.por15.com

PR: Tell me about this POR-15 steering wheel repair product. Does it use the same cyano-acrylate base as the POR-15 paint products?

CW: No, not at all. The epoxy putty we supply in the steering wheel kit is a two-part epoxy mixture that can be used on metal, plastic, wood, brick, stone, concrete, glass, or tile. It bonds very well to those surfaces and has incredible strength. You can sand it, drill it, tap it, and so on, and it doesnít shrink. We also sell it separately because itís got so many other uses.

PR: How do you use this epoxy?

CW: When you mix it, itís like potterís clay and it will stay soft for a long time. We recommend that people file down cracks and gap areas to give the epoxy more room and a good fresh surface for the epoxy to bond with. You can use it to fill areas and smooth it with your hand, and then sand it when itís cured.

PR: It sounds like restorers could use this to fill the back of a stripped knob or other fitting and then drill and tap the knob for further use?

CW: Thatís actually a very common use for it. Knobs and steering wheels can be repaired with this product and then used as they were before. This product is actually overkill for the cosmetic things you can do, such as steering wheels.

PR: Iím surprised that this product doesnít use the same chemistry as the basic POR-15.

CW: Weíve expanded over the years. We pride ourselves on our maintenance products for people who have unique problems. For example, we have a very good body filler, too. Weíre not the only game in town, but we are the best game in town.
